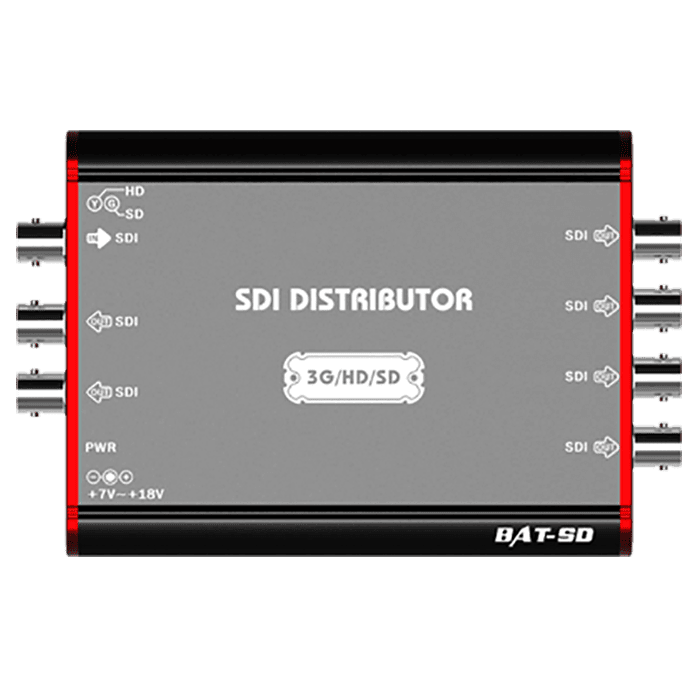

BAT-Distributor
1 x 6 SDI Distributor
Thông số kỹ thuật
Input
Parameter | Units | Min. | Typ. | Max |
SDI Input Cable Lengths |
|
|
|
|
SD-SDI (Belden 1694A) | 250 |
| m |
|
HD-SDI (Belden 1694A) | 170 |
| m |
|
3G-SDI (Belden 1694A) | 155 |
| m |
|
RF Input | ||||
Connector (1port) | 75 Ohm, 1 x BNC type female | |||
Display | ||||
Input SDI Detect | SD(Green), HD,3G (Yellow) | |||
Output
Parameter | Min. | Max. | Units | Typ. | |
Rise/Fall time | SD-SDI: rise/fall time (20-80%) |
|
| ps | 600 |
| HD-SDI: rise/fall time (20-80%) |
|
| ps | 100 |
| 3G-SDI: rise/fall time (20-80%) |
|
| ps | 100 |
Peck to Peck Voltage Swing | SD/ HD/ 3G-SDI | 720 | 880 | mVpp | 800 |
Overshoot / Undershoot | SD/ HD/ 3G-SDI | -10 | +10 | % |
|
RF Input | Connector (1port) | 75ohm, 1 x BNC type female | |||
Output
Parameter | Min. | Max. | Units | Typ. |
DC Input Power | 7 | 18 | V |
|
Lowest Power Consumption |
| 2 | W |
|
Dimensions | 131 x 99 x 28.4 (except connector )mm | |||
Weight | 370g | |||
