Bộ Mã Hóa Qua mạng IP ez-Caster EN8

Mã sản phẩm: ez-Caster EN8
Thương hiệu: LUMANTEK
Hết hàng

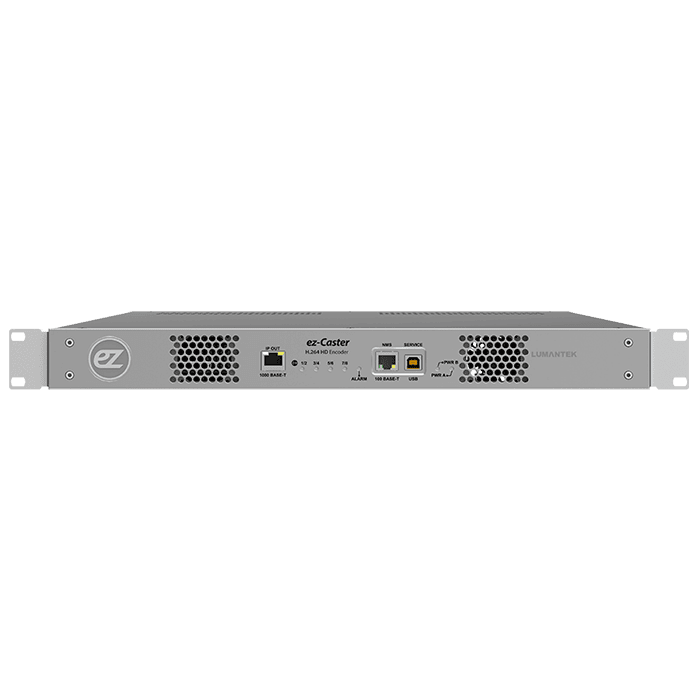

ez-Caster EN8 Encoder over IP Network



H.264 Real Time Encoding

Your 8 video sources will be encoded into H.264 (MPEG4), so you can make the videos light to upload on the net.



TS over IP

Send out video signals in IP network! Stream videos to set-top boxes, computers, laptops, mobile, and more!



Control through LAN or USB

LUMANTEK's ez-Caster EN8 comes with a light software to manage the encoded videos. Connect the encoder to your PC to gain control of the video network.



Thông số kỹ thuật

ez-Caster En8 Encoder

 Input

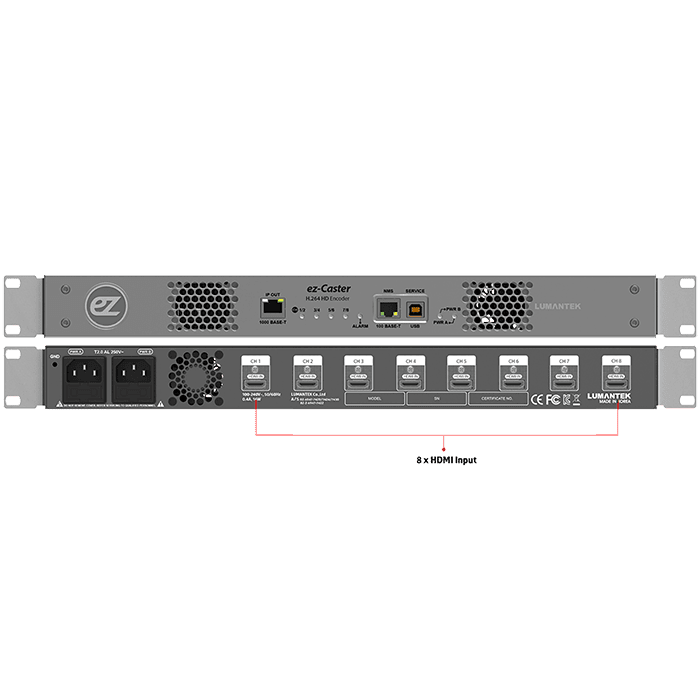

 * HDMI 1.4 x 8 Ch
 * Resolutions
   1920 x 1080 @60i, 59.94i, 50i
   1920 x 1080 @30p, 29.97p, 25p, 24p, 23.98p
   1280 x 720 @60p, 59.94p, 50p
   720 x 480 @60i, 59.94i
   720 x 576 @50i

Video Encoding

 Compression Standard : H.264 / Mpeg 4 part 10 (AVC)
 Profiles : High
 Levels : 4.0
 Bit Rates : 3.5Mbps to 18Mbps (CBR), VBR
 Etc : GOP (Size, Structure)
         CPB delay
         down scaling support

 Encoder Recording Mode

 Compression Standard : MPEG1-Layer2, MPEG2-AAC, MPEG4-AAC
 Channels : 2 Channel (stereo)
 Bit Rates : 48-512Kbps (depends on codec)
 Etc : GOP (size, structure)
         CPB Delay
         down caling support

Encoder Recording Mode

 Compression Standard :
 MPEG1- Layer2, MPEG2-AAC, MPEG4-AAC
 Channels : 2 channel (stereo)
 Bit rates : 48 - 512 Kbps (depends on codec)

 Networking Interface

100/ 1000 base-T Ethernet
      * 1000Mbps full duplex (streaming)
      * 10Base-T/ 100Base-TX half/full duplex (NMS)
Streaming protocols : MPEG-2 TS/UDP/IP
Unicast, Multicast and Multi Unicast
NMS : IPV4 Support
Fixed IP Address (DHCP not supported)

Management Software

Central Command and Control Application
  * Resides on any PC network node
  * Encoding control and manipulation
  * Frame rate and resolution control
  * IP control
  * GOP, CPB delay control
OS Support :
Windows 10 (32-bit, 64-bit)
Windows 7 (32-bit, 64-bit)

Power

100-240V~, 50/60Hz, 0.4A

Regulatory / Environmental

Operating Temperature : 0 to 45 degree celsius

Mechanical

Dimensions Encoder:
45(H) x 420(H) x 290(D) mm
Rackmountable with optional rackmount tray and accessories



Kích Thước
