Bộ Đổi Tín Hiệu BAT Converter

BAT CONVERTERS là bộ chuyển đổi tín hiệu chất lượng cao của hãng Lumantek gồm 4 chủng loại chuyển đổi mà từ đó bạn có thể chọn tùy theo nhu cầu của bạn như sau:

  • BAT-HS (HDMI to HD-SDI)
  • BAT-SH (HD-SDI to HDMI)
  • BAT-AS (Analog to HD-SDI)
  • BAT-SA (HD-SDI to Analog)



Mã sản phẩm: BAT-SA
Thương hiệu: LUMANTEK
Hết hàng

BAT CONVERTERS

Thông Số Kỹ Thuật



BAT-HS (HDMI to HD-SDI)

Supported Video Formats

  • 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50

  • 1280 x 720p @ 50, 1280 x 720p @ 59.94/60

  • 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60

  • 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30

  • 1920 x 1080p @ 50, 1920 x 1080p @ 59.94/60

Video Inputs

  •  HDMI with embedded audio & auto mute when DVI input

Video Outputs

  •  SMPTE-259/272/274/292/296/299/424/425 3G/HD/SD-SDI, 2 x BNC

Audio Outputs

  • Supports 8 audio channels (4 stereo pairs)
    • when the input audio sample rate is 48kHz
    • Supports 2 audio channels (1 stereo pair)
    • Auto detection of the input audio sample rate



BAT-SH (HD-SDI to HDMI)



Supported Video Formats

  • 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50

  • 1280 x 720p @ 50, 1280 x 720p @ 59.94/60

  • 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60

  • 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30

  • 1920 x 1080p @ 50, 1920 x 1080p @ 59.94/60

Video Inputs

  • 3G, HD, and SD-SDI (auto-selected), SMPTE-259/272/274/292/296/299/424/425

  • 1x BNC input, 1x BNC loop-through output

Video Outputs

  • HDMI v1.3a, 24/30/36 bits per pixel, RGB, 2.25Gbs, SD, HD, 1080p50/60

  • HDMI Standard Type A connector

Audio Outputs

  • HDMI embedded audio, 24 bit, 2 or 8 channels RCA-style analog outputs at -10dBV



BAT-AS (Analog to HD-SDI)



Supported Video Formats

  • 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50

  • 1280 x 720p @ 50, 1280 x 720p @ 59.94/60

  • 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60

  • 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/3-

Video Inputs

  •  HD Component (YPbPr) or SD Component/Composite/S-Video, 3x BNC

Video Outputs

  • SMPTE-259/272/274/292/296/299 HD/SD-SDI with embedded audio outputs, 1 x BNC

Audio Outputs

  •  2 channels unbalanced, 2x RCA

Video ADC

  •  12-Bits

Audio ADC

  • 24-Bits, 48kHz

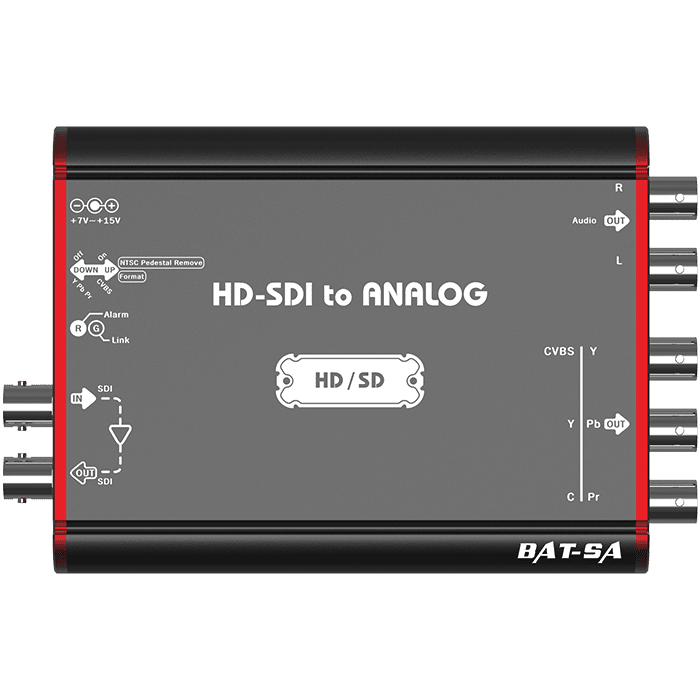

BAT-SA (HD-SDI to Analog)



Supported Video Formats

  • 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50

  • 1280 x 720p @ 50, 1280 x 720p @ 59.94/60

  • 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60

  • 1920 x 1080p @ 23.94/24, 1920 x 1080p @ 25, 1920 x 1080p @ 29.97/30

Video Inputs

  • HD and SD-SDI (auto-selected), SMPTE-259/272/274/292/296/299/424/425

  • 1x BNC input, 1x BNC loop-through output

Video Outputs

  • Selectable Component (YPbPr) or Composite (CVBS and S-Video) by DIP switch

  • NTSC and PAL support

  • 3x BNC output

Audio Outputs

  • 2 channels RCA-style analog outputs at -10dBv



Kích Thước

Thiết Kế
